What Floor Conditions Should You Check Before Installing a Car Lift?
Choosing the lift is only part of the installation process.
The workshop floor also needs to support the lift, its anchors and the loads transferred through the equipment during operation.
This is especially important for equipment that concentrates loads through columns, base plates or anchor points.
There is no single concrete specification that applies to every car lift.
The final installation requirement must come from the documentation for the exact lift model.
Before installation, check the following areas.
## 1. Concrete Thickness
Start by confirming the actual slab thickness.
Do not assume the floor is suitable simply because:
– the building is relatively new;
– vehicles already drive across it;
– another machine is installed nearby.
A vehicle lift transfers loads differently from a vehicle sitting directly on its tires.
Required slab thickness can vary according to:
– lift design;
– rated capacity;
– column or base structure;
– anchoring system;
– manufacturer requirements.
If slab thickness is unknown, it should be verified before installation.
## 2. Concrete Strength
Thickness alone does not determine whether the floor is suitable.
Concrete compressive strength also matters.
Two slabs with the same thickness can have different structural properties.
Check the installation documentation for the exact lift being considered rather than relying on a generic concrete recommendation.
## 3. Condition of the Existing Slab
Inspect the intended installation area.
Look for:
– major cracks;
– damaged concrete;
– repaired areas;
– deterioration;
– voids;
– badly broken surfaces.
A lift should not simply be anchored through questionable concrete because the surrounding floor appears solid.
If structural condition is uncertain, the site should be assessed appropriately before installation.
## 4. Expansion Joints and Slab Edges
Lift anchors cannot be placed anywhere on the workshop floor.
Their position relative to:
– concrete edges;
– expansion joints;
– cracks;
– adjacent slabs;
– openings
can affect installation.
Required distances depend on the selected lift and anchoring system.
These conditions should be checked during layout planning, before anchor holes are drilled.
## 5. Anchor Requirements
Anchors are part of the lift installation system.
Check the requirements for:
– anchor type;
– anchor size;
– embedment depth;
– hole preparation;
– installation procedure;
– required clearances.
The specified installation hardware and procedure for the selected lift should be followed.
## 6. New Concrete Needs Adequate Curing
If a new foundation or slab is being prepared, installation should not begin simply because the concrete surface appears dry.
The concrete needs to reach the condition required by the installation specification before anchors and equipment loads are applied.
This should be included in the project schedule before lift installation.
## 7. Check Whether the Floor Is Level
Floor level can affect installation and equipment operation.
It becomes particularly important for:
– alignment lifts;
– long runway lifts;
– equipment where platform level affects the service process.
An uneven floor should be identified before installation.
## 8. Check What Is Under the Floor
Before drilling anchor holes, determine whether the slab contains or covers:
– underfloor heating;
– electrical conduit;
– water pipes;
– drainage;
– other embedded services.
These conditions should be confirmed before installation work begins.
## Different Lift Types Can Have Different Requirements
Do not assume that a workshop suitable for one lift is automatically suitable for another.

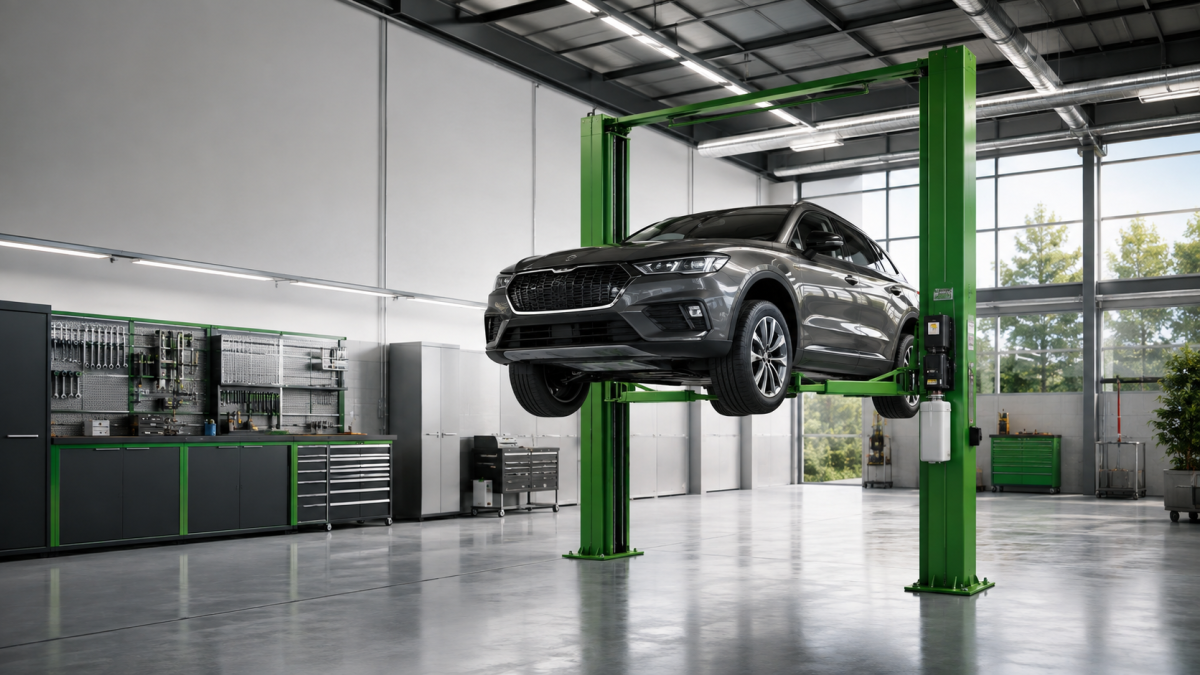

### Two-Post Lifts
Two-post lifts transfer loads through two primary column bases, making foundation and anchoring conditions particularly important.
Explore:
[Two-Post Lifts](/products/two-post-lifts/)
### Four-Post Lifts
Four-post lifts distribute loads differently, but installation requirements still depend on the specific model and configuration.
Explore:
[Four-Post Lifts](/products/four-post-lifts/)
### Scissor Lifts
Depending on the design, scissor lifts may be surface-mounted or installed in a prepared recess.
Foundation requirements can therefore differ significantly between configurations.
Explore:
[Scissor Lifts](/products/scissor-lifts/)
### Alignment Lifts
Alignment equipment adds another consideration:
the platforms need to be installed and leveled correctly for the intended alignment work.
Explore:
[Wheel Alignment Lifts](/products/wheel-alignment-lifts/)
## Pre-Installation Checklist
| Item | Check |
|—|—|
| Concrete thickness | Confirmed |
| Concrete strength | Confirmed |
| Slab condition | Inspected |
| Cracks and joints | Identified |
| Installation area | Measured |
| Anchor requirements | Checked |
| Floor level | Checked |
| Hidden utilities | Checked |
| Ceiling clearance | Checked |
| Electrical supply | Checked |
| Exact installation documentation | Available |
If several of these items are unknown, resolve them before installation rather than after the lift arrives.
## Do Not Start With a Generic Concrete Number
A common question is:
**How thick does concrete need to be for a car lift?**
That can be useful as an early planning question, but it is not the final installation specification.
The correct process is:
**Choose the lift → obtain the exact installat
