Workshop Lifting Solutions
Professional lifting equipment designed for automotive service, maintenance and workshop applications.

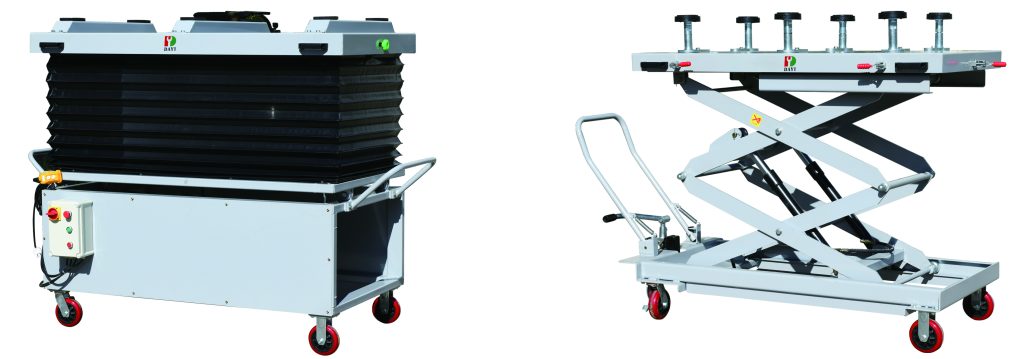

EV Battery Lift
A 1,500 kg EV battery lift with 1,800 mm maximum lifting height, 1000 × 1700 mm platform, bi-directional table slide, independent side tilt and electronic control with emergency stop.
Sealed hydraulic cylinder with reinforced scissor arms.
±30 mm bi-directional table slide (longitudinal & lateral) for precise bolt alignment during installation and removal.
Raised wooden rails with detachable fork pockets for battery transfer with stacker.
Independent side tilt and full platform lift for versatile chassis compatibility.
Cylinder-supported tilt adjustment eliminates manual operation for quick and convenient positioning.
Dual ergonomic handles for easy machine mobility.

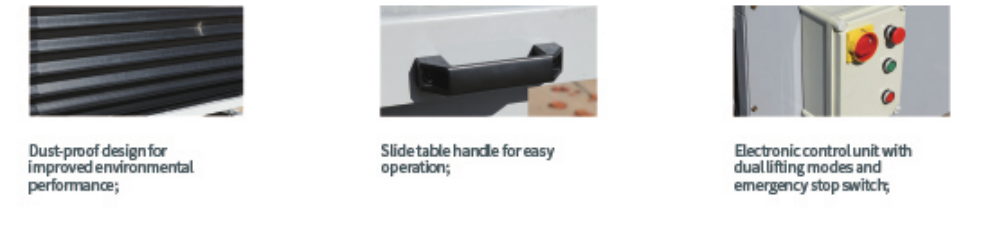

Dust-proof design for improved environmental performance.
Side table handle for easy operation.
Electronic control unit with dual lifting modes and emergency stop switch.
CE certification
Ministry of Transport Certification
| Rated Lifting Capacity | 1500 kg |
|---|---|
| Max. Lifting Height | 1800 mm |
| Min. Approach Height | 1130 mm |
| Platform Dimensions | 1000 × 1700 mm |
| Power Supply | 220 V |
| Net Weight | 482 kg |
Verified documentation and real manufacturing capability behind DAYI workshop equipment.
DAYI maintains product inspection and certification documentation to support product verification and buyer review. Relevant reports and certification records can be provided according to the product and project requirements.
DAYI operates a 6,333.65 m² manufacturing base for workshop equipment production, assembly and inspection. The facility supports lift manufacturing, component assembly and production-stage quality control.
See real production and manufacturing footage from DAYI’s workshop equipment facility.
A closer look at lift components and production processes.
Real factory footage showing workshop equipment during production.
It depends on the actual vehicle weight, weight distribution, lifting points and the specifications of the selected lift. Many passenger SUVs may fall within the capacity range of a 4-ton lift, but suitability should always be checked for the specific vehicle and lift.
The confirmed distance between the columns of the TPL-F408E is 2,795 mm. This dimension should be considered together with the vehicle dimensions and the available workshop space when evaluating the planned installation area.
It is useful to prepare the available workshop dimensions, vehicle types, intended use, electrical supply, planned installation area and any relevant site conditions. Providing this information helps make the product and quotation discussion more accurate.
Workshop dimensions help determine whether the available service area can accommodate the lift and support normal vehicle movement and technician access. Equipment dimensions should be reviewed together with ceiling height, walls, columns, nearby equipment and the planned vehicle path.
Feedback from customers using DAYI workshop equipment.
Be the first to share your experience with DAYI equipment.
Share your vehicle types, service scenario, required capacity and workshop conditions with the DAYI team.
