Workshop Lifting Solutions
Professional lifting equipment designed for automotive service, maintenance and workshop applications.

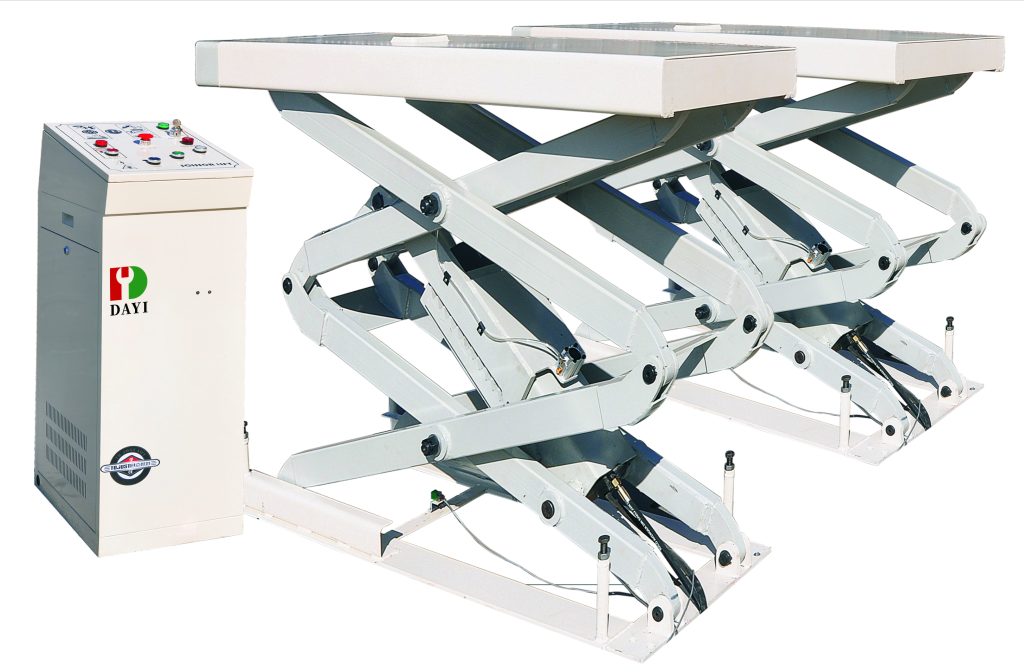

Flush-Mounted Compact Scissor Lift
Electro-hydraulically driven with flexible installation options for floor-mounted or flush-mounted installation, suitable for maintenance and repair of cars, SUVs and light trucks.
Dual-cylinder design for powerful drive and heavy-duty lifting capacity.
Mechanical safety locking device for reliable operation; pneumatic unlocking for ultra-low noise.
Pull-out extendable platform design for wider service coverage.
Safe 24V low-voltage control.
Audible alarm during descending to prevent accidental injury.
Built-in motor overload protection.
Manual emergency lowering pump (optional).
Guide-channel support blocks and raised rubber pads (optional).
CE certification
Ministry of Transport Certification

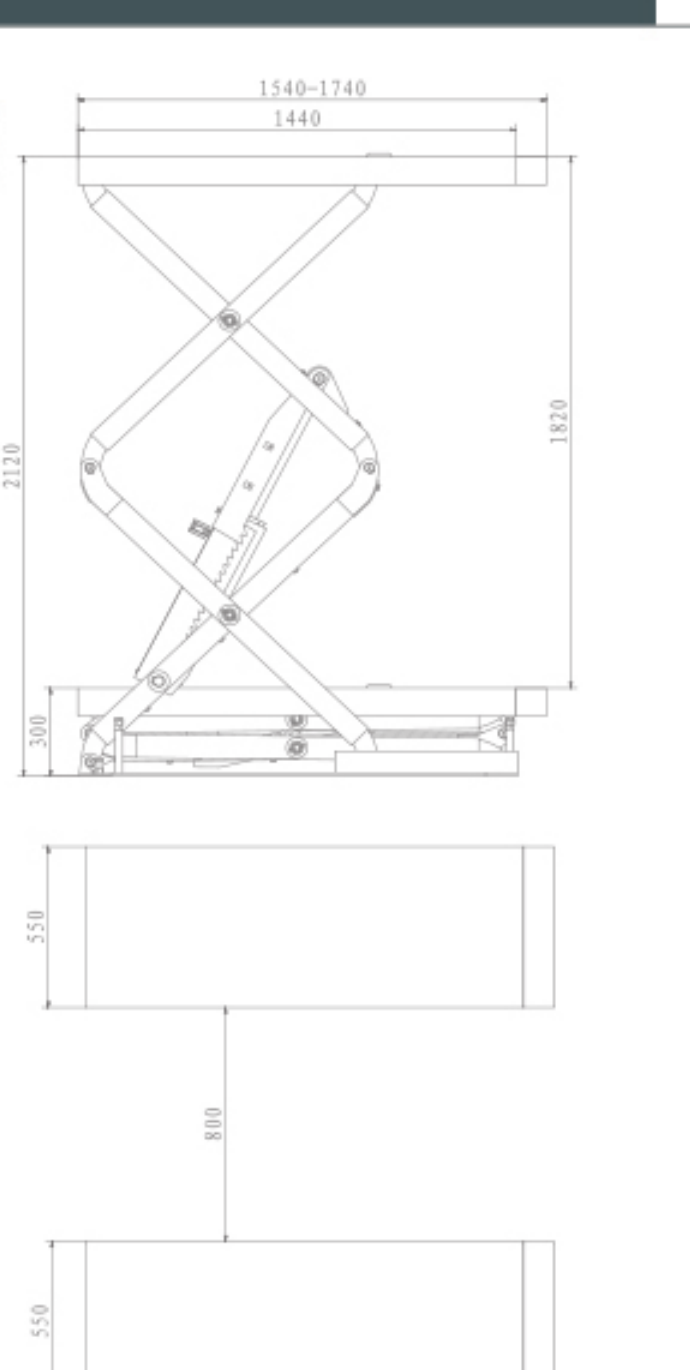

| Lifting Capacity | 3500 kg |
|---|---|
| Lifting Height | 1820 mm |
| Flush-Mounted Depth | 300 mm |
| Machine Weight | 700 kg |
| Lifting Time | 70 s |
| Lowering Time | 65 s |
Verified documentation and real manufacturing capability behind DAYI workshop equipment.
DAYI maintains product inspection and certification documentation to support product verification and buyer review. Relevant reports and certification records can be provided according to the product and project requirements.
DAYI operates a 6,333.65 m² manufacturing base for workshop equipment production, assembly and inspection. The facility supports lift manufacturing, component assembly and production-stage quality control.
See real production and manufacturing footage from DAYI’s workshop equipment facility.
A closer look at lift components and production processes.
Real factory footage showing workshop equipment during production.
It depends on the actual vehicle weight, weight distribution, lifting points and the specifications of the selected lift. Many passenger SUVs may fall within the capacity range of a 4-ton lift, but suitability should always be checked for the specific vehicle and lift.
The confirmed distance between the columns of the TPL-F408E is 2,795 mm. This dimension should be considered together with the vehicle dimensions and the available workshop space when evaluating the planned installation area.
Prepare the types of vehicles you service most often, the heaviest vehicles you expect to lift, the work performed in the service bay, available workshop dimensions, ceiling height and known floor conditions. This information helps narrow down the suitable lift type and capacity before comparing individual models.
It is useful to prepare the available workshop dimensions, vehicle types, intended use, electrical supply, planned installation area and any relevant site conditions. Providing this information helps make the product and quotation discussion more accurate.
Workshop dimensions help determine whether the available service area can accommodate the lift and support normal vehicle movement and technician access. Equipment dimensions should be reviewed together with ceiling height, walls, columns, nearby equipment and the planned vehicle path.
A general automotive repair workshop layout should consider service bay positions, vehicle entry and exit paths, workbench areas, tool and parts storage, open circulation space, ceiling height, power access and existing structural restrictions.
Feedback from customers using DAYI workshop equipment.
Be the first to share your experience with DAYI equipment.
Share your vehicle types, service scenario, required capacity and workshop conditions with the DAYI team.
