Workshop Lifting Solutions
Professional lifting equipment designed for automotive service, maintenance and workshop applications.

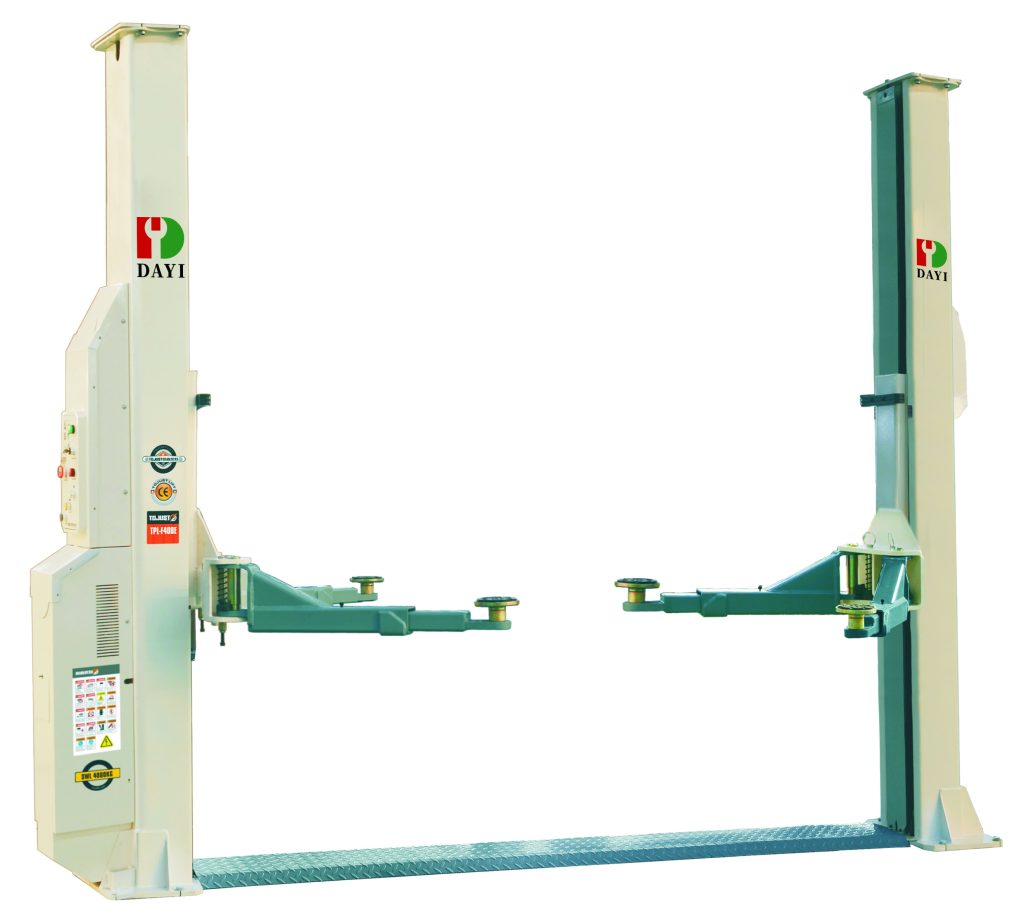

4.08T Electric-Controlled Hydraulic 2-Post Lift
A 4,080 kg electric-controlled hydraulic two-post lift designed for professional workshop lifting, with 1,800 mm maximum lift height and flexible 110V / 220V / 380V power options.

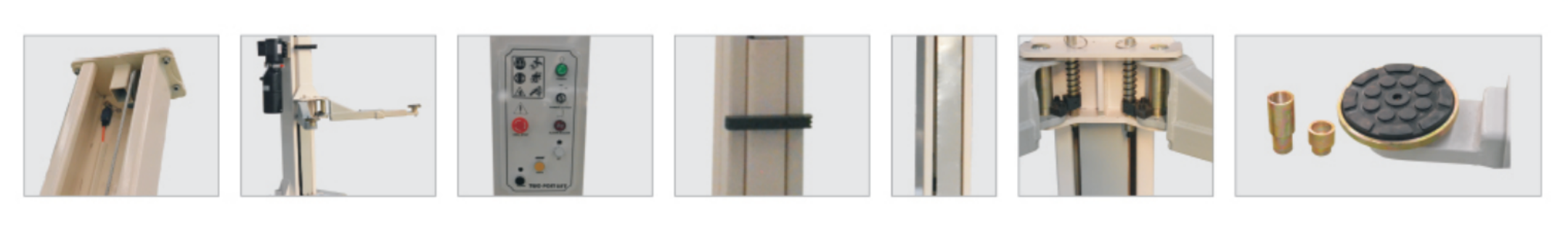

4.08T lifting capacity with smooth and stable operation.
Safe and convenient control for efficient daily operation.
Helps maintain synchronized and stable lifting.
Provides reliable mechanical safety protection.
Low-voltage control designed for safer operation.
Designed for low noise, reduced leakage and long service life.
Prevent foreign objects from entering and causing malfunctions.
Hydraulic system and anti-explosion valve safety devices.
Long-lasting durability, available in various colors.
Available as an option.

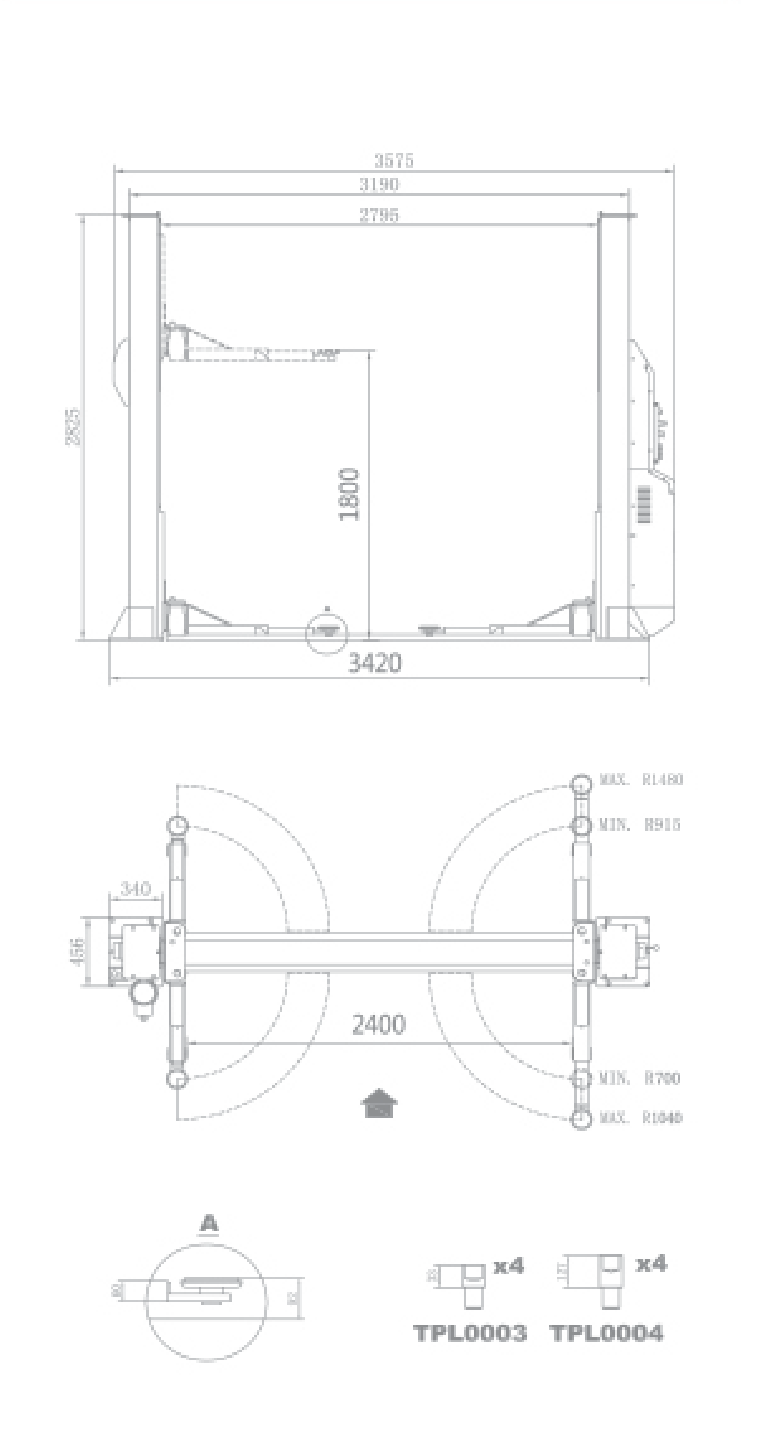

| Between-Column Width | 2795 mm |
|---|---|
| Lifting Capacity | 4080 kg |
| Lifting Time | 55–65 s |
| Lowering Time | 50 s |
| Max. Lifting Height | 1800 mm |
| Overall Height | 3420 mm |
| Overall Width | 3390 mm |
| Power Supply | 110V/220V/380V, 50/60Hz, 1Ph/3Ph |
Verified documentation and real manufacturing capability behind DAYI workshop equipment.
DAYI maintains product inspection and certification documentation to support product verification and buyer review. Relevant reports and certification records can be provided according to the product and project requirements.
DAYI operates a 6,333.65 m² manufacturing base for workshop equipment production, assembly and inspection. The facility supports lift manufacturing, component assembly and production-stage quality control.
See real production and manufacturing footage from DAYI’s workshop equipment facility.
A closer look at lift components and production processes.
Real factory footage showing workshop equipment during production.
It depends on the actual vehicle weight, weight distribution, lifting points and the specifications of the selected lift. Many passenger SUVs may fall within the capacity range of a 4-ton lift, but suitability should always be checked for the specific vehicle and lift.
The confirmed distance between the columns of the TPL-F408E is 2,795 mm. This dimension should be considered together with the vehicle dimensions and the available workshop space when evaluating the planned installation area.
Prepare the types of vehicles you service most often, the heaviest vehicles you expect to lift, the work performed in the service bay, available workshop dimensions, ceiling height and known floor conditions. This information helps narrow down the suitable lift type and capacity before comparing individual models.
The TPL-F408E has a rated lifting capacity of 4,080 kg. When evaluating whether it is suitable for a workshop, the lifting capacity should be considered together with the types and specifications of vehicles that will normally be serviced.
The TPL-F408E supports 110V, 220V and 380V power options, with 50Hz or 60Hz frequency and single-phase or three-phase configurations. The required electrical configuration should be confirmed according to the actual workshop power supply before ordering.
The maximum lifting height of the TPL-F408E is 1,800 mm. Workshop operators should consider this together with the overall lift height, vehicle dimensions and available vertical working space.
It is useful to prepare the available workshop dimensions, vehicle types, intended use, electrical supply, planned installation area and any relevant site conditions. Providing this information helps make the product and quotation discussion more accurate.
Workshop dimensions help determine whether the available service area can accommodate the lift and support normal vehicle movement and technician access. Equipment dimensions should be reviewed together with ceiling height, walls, columns, nearby equipment and the planned vehicle path.
Feedback from customers using DAYI workshop equipment.
我与大易的合作非常愉快，这是一个非常专业的团队，我去过他的工厂，受到了大易非常友好的接待。
The lift feels solid and stable during daily workshop use. The controls are straightforward, and the lifting speed is suitable for our normal service work. Communication with the DAYI team was also clear during the order process.
Share your vehicle types, service scenario, required capacity and workshop conditions with the DAYI team.
