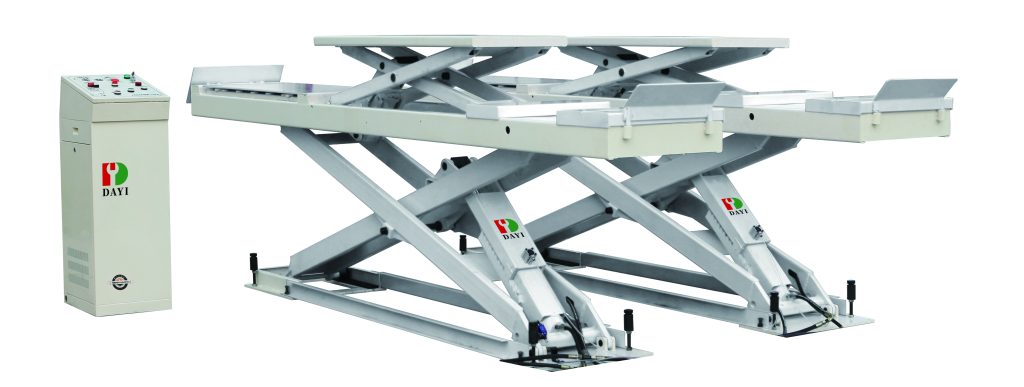

5.0T Wheel Alignment Single-Scissor Lift
A 5.0T wheel alignment single-scissor lift with floor-mounted or flush-mounted installation for wheel alignment, inspection and maintenance of cars, SUVs and light trucks.
5-ton ultra-thin large-scissor design for on-ground or in-ground installation, suitable for wheel alignment, body inspection and maintenance services.
Dual-cylinder structure for powerful drive, ensuring platform balance and safety.
Mechanical safety locking device ensures safety during lifting; pneumatic unlocking for ultra-low noise.
Parallelism of the two platforms can be adjusted within 1 mm to support wheel alignment inspection and adjustment precision.
Safe 24V low-voltage control and audible alarm during descending help prevent accidental injury.
Removable secondary lifting jack.
CE certification
Ministry of Transport Certification

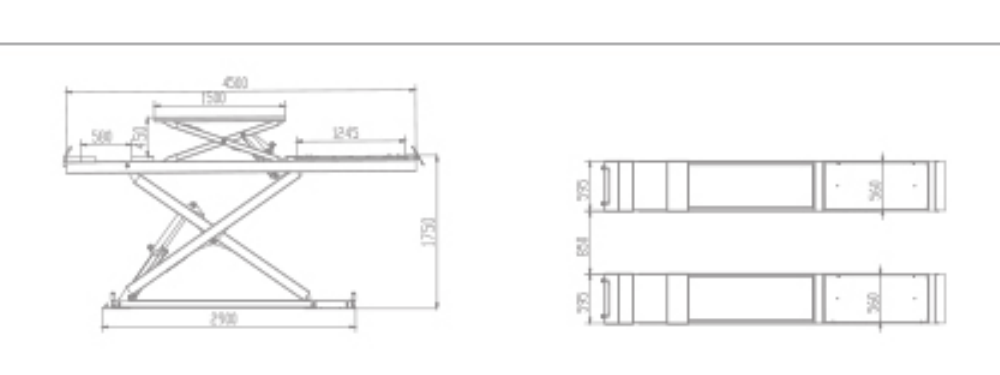

| Max. Lifting Capacity | 5000 kg |
|---|---|
| Max. Lifting Height | 1850 mm |
| Platform Length | 5000 mm |
| Flush-Mounted Depth / Pit Depth | 360 mm |
| Lifting Time | ~65 s |
| Lowering Time | ~55 s |
| Motor Power | 3 kW, 380V/50Hz or 220V/50Hz (60Hz) |
| Max. Hydraulic Pressure | 28 MPa |
| Working Noise | ≤75 dB(A) |
Verified documentation and real manufacturing capability behind DAYI workshop equipment.
DAYI maintains product inspection and certification documentation to support product verification and buyer review. Relevant reports and certification records can be provided according to the product and project requirements.
DAYI operates a 6,333.65 m² manufacturing base for workshop equipment production, assembly and inspection. The facility supports lift manufacturing, component assembly and production-stage quality control.
See real production and manufacturing footage from DAYI’s workshop equipment facility.
A closer look at lift components and production processes.
Real factory footage showing workshop equipment during production.
It depends on the actual vehicle weight, weight distribution, lifting points and the specifications of the selected lift. Many passenger SUVs may fall within the capacity range of a 4-ton lift, but suitability should always be checked for the specific vehicle and lift.
The confirmed distance between the columns of the TPL-F408E is 2,795 mm. This dimension should be considered together with the vehicle dimensions and the available workshop space when evaluating the planned installation area.
Prepare the types of vehicles you service most often, the heaviest vehicles you expect to lift, the work performed in the service bay, available workshop dimensions, ceiling height and known floor conditions. This information helps narrow down the suitable lift type and capacity before comparing individual models.
It is useful to prepare the available workshop dimensions, vehicle types, intended use, electrical supply, planned installation area and any relevant site conditions. Providing this information helps make the product and quotation discussion more accurate.
Workshop dimensions help determine whether the available service area can accommodate the lift and support normal vehicle movement and technician access. Equipment dimensions should be reviewed together with ceiling height, walls, columns, nearby equipment and the planned vehicle path.
A general automotive repair workshop layout should consider service bay positions, vehicle entry and exit paths, workbench areas, tool and parts storage, open circulation space, ceiling height, power access and existing structural restrictions.
